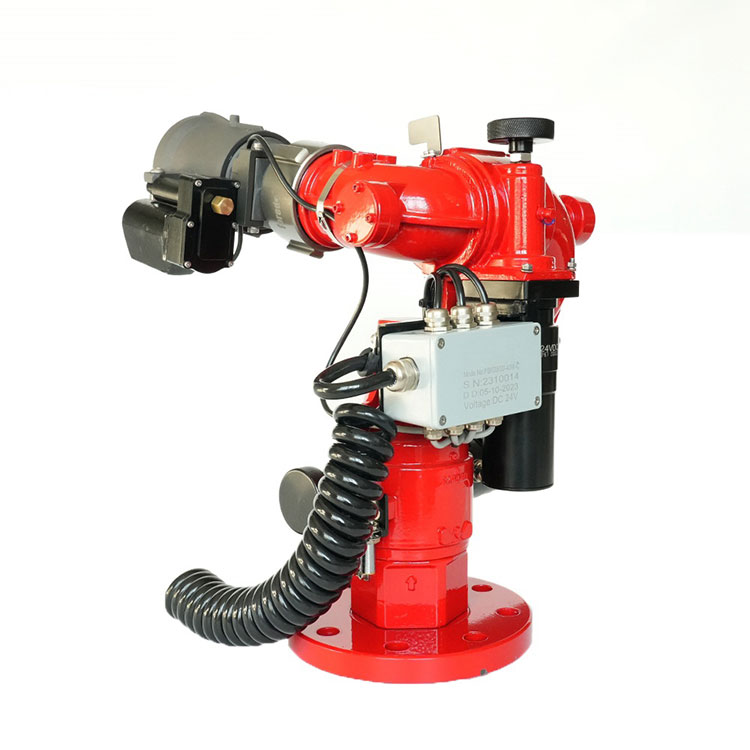

Plent Fixed Electric Fire Monitor’s main structure is made of Rugged and Corrosion-Resistant Hard Anodized Aluminum Alloy. This allows our electric fire monitor working long-term period in severe and harsh environment, including wild fire fighting, deicing, fixed fire protection system, vehicle mount, etc. This product material also ensure Plent Fixed Electric Fire Monitor featuring with competitive price.
Plent Fixed Electric Fire Monitor – C Series can provide larger water flow, from 1200LPM to 2400LPM. For More Info., please kindly refer to below tech data sheet.
|
Product |
Plent Fixed Electric Fire Monitor-C Series |
||
|
Model |
PSKD8/20W-C |
PSKD8/30W-C |
PSKD8/40W-C |
|
Working Pressure |
8Bar / 116PSI |
8Bar / 116PSI |
8Bar / 116PSI |
|
Flow Rate |
1200lpm (320GPM) |
1800lpm (475GPM) |
2400lpm (635GPM) |
|
Max Reach |
≥53m |
≥60m |
≥65m |
|
Flow Tolerance |
+10% |
||
|
Travel Range |
0°~360° (Horizontally)/-45°~+90°(vertically) |
||
|
Turning Speed |
12°/sec. (Horizontally) / 12°/sec.(Vertically) |
||
|
Jetting Pattern |
Jet or Fog Spray |
||
|
Max Fog Angle |
120° |
||
|
Working Voltage |
AC220V or DC 12V/24V (customized available) |
||
|
Monitor Inlet |
2.5”Flange or Bigger Size ( available for customized design) |
||
|
Monitor Outlet |
2.5”(63.5mm) |
||
|
Weight （N.W.） |
18.5kg (50.8 lbs) |
||
|
Waterway Size |
2.5”(63.5mm) |
||
|
Product Material |
Aluminum Alloy (Nozzle and Monitor Body) |
||
|
Trademark |
Shengxin Firepro Tech or Customized |
||
1. Durable and Light Product Construction
2. High Waterproof Protection for Electric Parts
3. Imported Key Parts (Motor and Sensor)
4. Flexible Oscillation and Travel Limit Setting
5. Extra Manual Operation Function for emergency case
6. Professional Engineer Team for Aftersales and Tech Supports

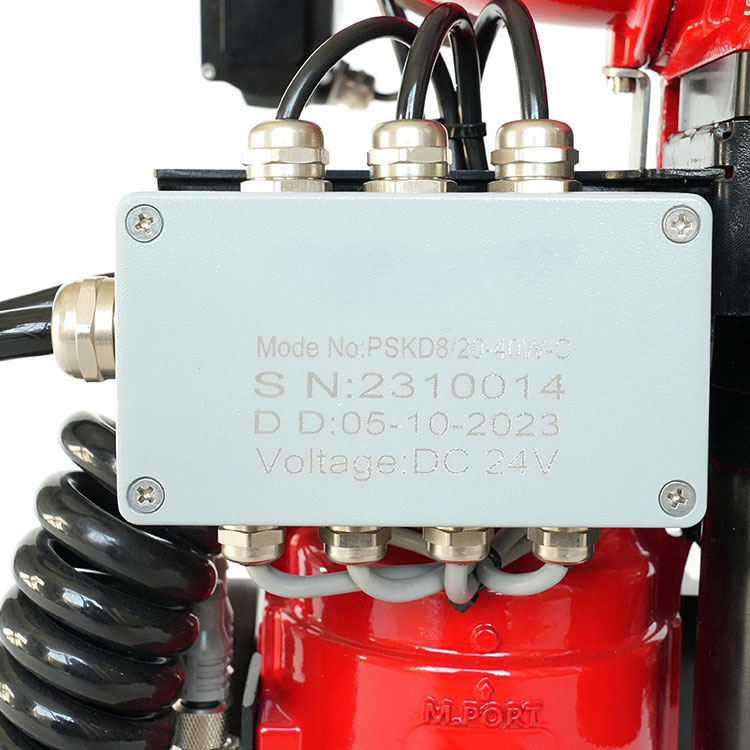

7. Reliable, Leakproof DT connector for easy cable connection.
8. 1-Year Warranty
● Oil & Gas
● Fuel Storage Area
● Fire & Rescue
● Mining
● Sea Conditions
● Chemical Industry
For More info about Ningbo Plent Fixed Electric Fire Monitor products, feel free to contact us any time.
